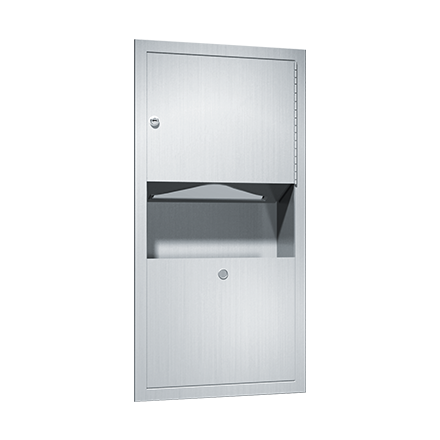

PA0462AD - Paper Towel Dispenser and Waste Receptacle

Paper Towel Dispenser and Waste Receptacle

• Holds and dispense 475 standard multi-fold or (350) standard C-fold paper towels.
• Waste capacity of 2 gal. (7.6 liters).
• Door and cabinet fabricated of alloy 18-8 stainless steel, type 304, 22 gauge.
• All exposed surfaces shall have No 4 satin finish.
• Protected during shipment with a PVC film that is easily removable after installation.
• Door shall be of double-pan construction with fiberboard filler.
• Attached to cabinet at side with a full length 3/16′′ dia. stainless steel multi-staked piano hinge.
• Held closed with a tumbler lock keyed alike to other ASI washroom equipment.
• Towel dispensing slot is fully deburred edges for snag free dispensing and user safety.
• Waste receptacle has hemmed edges.
• Rolled-edge finger-hole for ease of service removal and maintenance safety.
• Structural assembly of body and door components shall be of welded construction.

Rough Wall Opening required is.. 12-3/4"W x 26-1/2"H x 4"D. minimum (324mm x 673mm x 102mm).
